Motion Sensor
Motion sensor for use with SCR-1 and SCR-2 stair light controllers.
Available options:
Flush-mounted (PIR or Laser)
Surface-mounted (PIR)
Baluster mounted (PIR or laser)
Comes with 10 m of three-core wire
Sold separately! Two sensors are required to operate the controller.
Free next working day delivery for orders over £99 (UK only).
Motion sensor for use with SCR-1 and SCR-2 stair light controllers.
Available options:
Flush-mounted (PIR or Laser)
Surface-mounted (PIR)
Baluster mounted (PIR or laser)
Comes with 10 m of three-core wire
Sold separately! Two sensors are required to operate the controller.
Free next working day delivery for orders over £99 (UK only).
Motion sensor for use with SCR-1 and SCR-2 stair light controllers.
Available options:
Flush-mounted (PIR or Laser)
Surface-mounted (PIR)
Baluster mounted (PIR or laser)
Comes with 10 m of three-core wire
Sold separately! Two sensors are required to operate the controller.
Free next working day delivery for orders over £99 (UK only).
Details
Motion sensor for use with SCR1 and SCR2 stair light controllers.
Available options:
Flush-mounted (PIR or Laser) - open specifications (PDF)
Surface-mounted (PIR)
Baluster mounted (PIR or Laser) - open specifications (PDF)
Comes with 10 m of three-core wire
Sensor type: PIR sensor / laser sensor
For indoor use only
Detection range for PIR sensor: reliable range: 1 m 1.3 m, though this can depend on factors such as temperature and humidity and the sensors can trigger from up to 7-10 meters
Detection range for laser sensor: adjustable, minimum: 5-10 cm, maximum: 1.5m (flush-mounted), 80-90cm (baluster-mounted)
Detection angle for PIR sensors: 20-30 degrees
Free next working day delivery for orders over £99 (UK only).

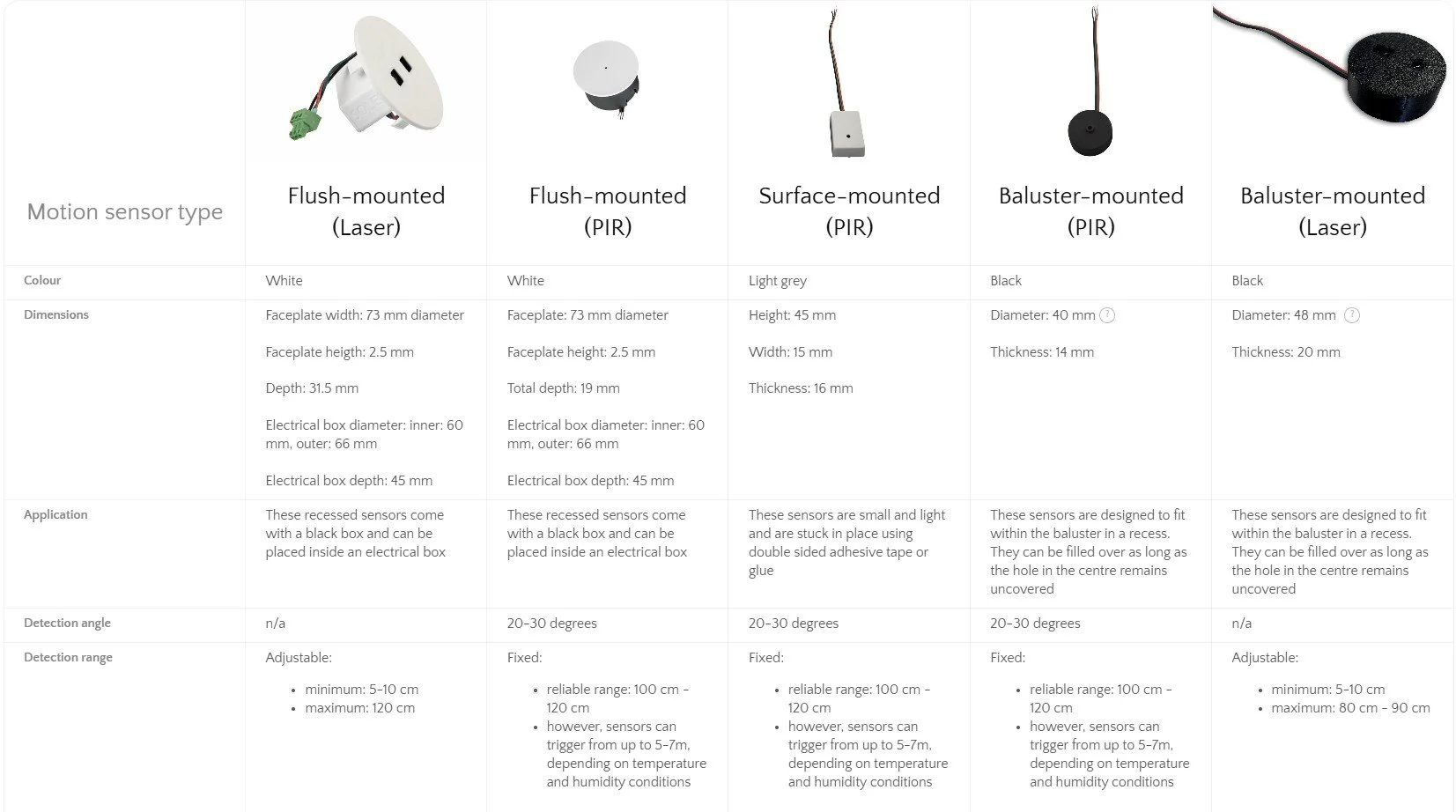

Motion sensor options
Our stair lighting systems require two motion sensors. There is a choice of three sensor that you can choose from:
