Stair light kit with mini spotlights
Follow the order steps carefully while you customise your stair lighting kit.
All items that you can add to your cart are in stock and will be shipped with DPD next working day delivery.
Deliveries are free within the UK for orders over £49.
Step 1: Select your controller
Available options:
Synchronised (SCR-1) controller which switches all lights together and is suitable for mini spotlights up to 200 W total (1 W / spotlight)
The Cascading (SCR-2 version 3) controller switches the lights on in a sequence and suitable for stairways with 2-20 steps (up to 200W, 1 W/spotlight).
Read more about the Controller’s specifications here.
Synchronised (SCR-1) controller
Synchronised (SCR-1) light effect
Cascading (SCR-2) controller
Cascading (SCR-2) light effect
Control Unit
Step 2: Add power supply
Available options:
MeanWell HDR-150-12: 12 V constant voltage power supply. Rated voltage: 135.6W, DIN rail compatible (details)
MeanWell HDR-150-24: 24 V constant voltage power supply. Rated voltage: 135.6W, DIN rail compatible (details)
Our mini spotlights are 12 V, so if you are adding the mini spotlights to your card, select the 12V version of the power supply.
MeanWell HDR-150-12
MeanWell HDR-150-24
Power supply
Step 3: Add your motion sensors
You will need to ADD TWO MOTION SENSORS to your order, one for the bottom and one for the top of the stairs.
The motion sensors come with 10m of three-core wire (unless stated otherwise).
Activation range: see table below
Beam angle 20-30 degrees
Our controllers are only guaranteed to work with these motion sensors.
Laser sensor specifications (PDF)
Available options:
Motion Sensor 1
Motion Sensor 2
You can either complete your order by clicking on the cart icon on the top or add further components to your system.
Step 4: Add your mini spotlights

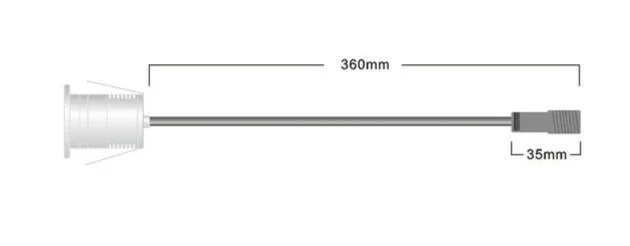

Mini spotlight details:
Pack of 9 mini LED spotlights
Narrow beam angle lights (30 degrees),
1 W power per light, that corresponds to 7–10 W incandescent bulb
Aluminium casing, flush-mounted installation, housing size 20 mm Ø x 25 mm with cut hole 15 mm Ø
12 V DC, dimmable, constant voltage lights
Frame colour options: black, white, silver
Light colour options: Warm White, Neutral White, Cold White
Comes with 20 cm two-core wire
Mini spotlights (pack of 9)
Step 5: Add your accessories
Suitable for SCR-1 /SCR-2 controller + power supply + timer
Electrical enclosure
410 mm x 210 mm x 100 mm
2 x 8 modules
DIN rail included
Free next working day delivery for orders over £99 (UK only).
Compatible with the SCR-1 /SCR-2 and ISL-32 controller + power supply
The timer switches the stair light’s control unit on or off at selected times or days. This can prevent the stair lights from illuminating during the daytime when you have sufficient natural light.
Free next working day delivery over £99 (UK only).
Compatible with our SCR-1, SCR-2 controllers, Meanwell HDR power supplies and digital timer
Top Hat 35 mm DIN rail
Available in two lengths:
Double-size (21 cm): suitable for mounting the controller + power supply
Triple-size (25 cm): suitable for mounting the controller + power supply + timer
Free next working day delivery for orders over £99 (UK only).
Standard two-core cable for connecting the SCR-1/SCR-2 controller with the compatible LED light.
Cross-section 2 x 0.45 mm2
This product comes packed by 10 or 50 meters.
Free next working day delivery for orders over £99 (UK only).
The daylight sensor is an optional accessory for the Cascading (SCR-2 version 3) controller
Comes with 3m long wire
Screwdriver included to adjust sensor sensitivity
Free next working day delivery over £99 (UK only).
Standard three-core cable for connecting the SCR-1/SCR-2 controller to the compatible motion sensors.
Minimum length 5 m
Cross-section 3 x 0.33 mm2
This product comes packed by 5 meters.
Standard three-core cable for connecting the Intelligent Stair Lighting’s motion sensors to the controller unit.
Minimum length 5 m
Cross-section 3 x 0.33 mm2
This product comes packed by 5 meters.
Free next working day delivery over £99 (UK only).
These connectors allow the quick and easy connection of cables without the need for a screwdriver or soldering kit.
This product comes packed in 10 or 50 pieces.
Free next working day delivery over £99 (UK only).
Important notice on your warranty!
Please note that all electrical works must be carried out by a fully qualified, registered electrician in accordance with both the UK 17th Edition Wiring Regulations and the manufacturers' instructions. We are unable to refund or replace any item deemed faulty unless it has been installed by a fully qualified electrician, registered to one of the UK's five trade bodies: NICEIC, NAPIT, ECA, ELECSA, JIB. When returning a faulty item we require full details of the installing electrician in order to verify the integrity of both the installation and electrical wiring system including fuse board and circuit protection devices.
